PRODUCT DETAILS
Description

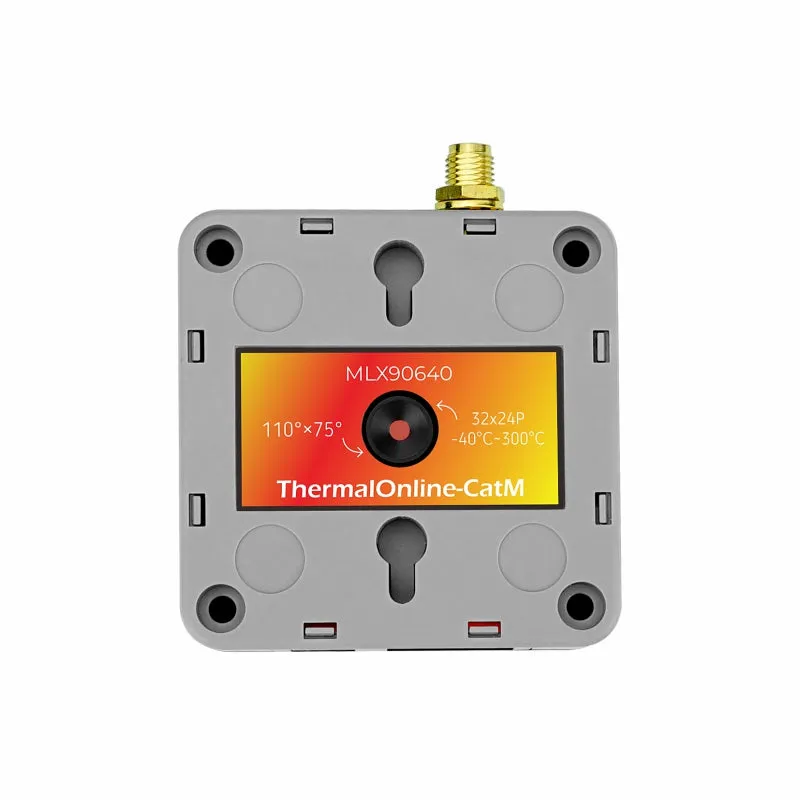

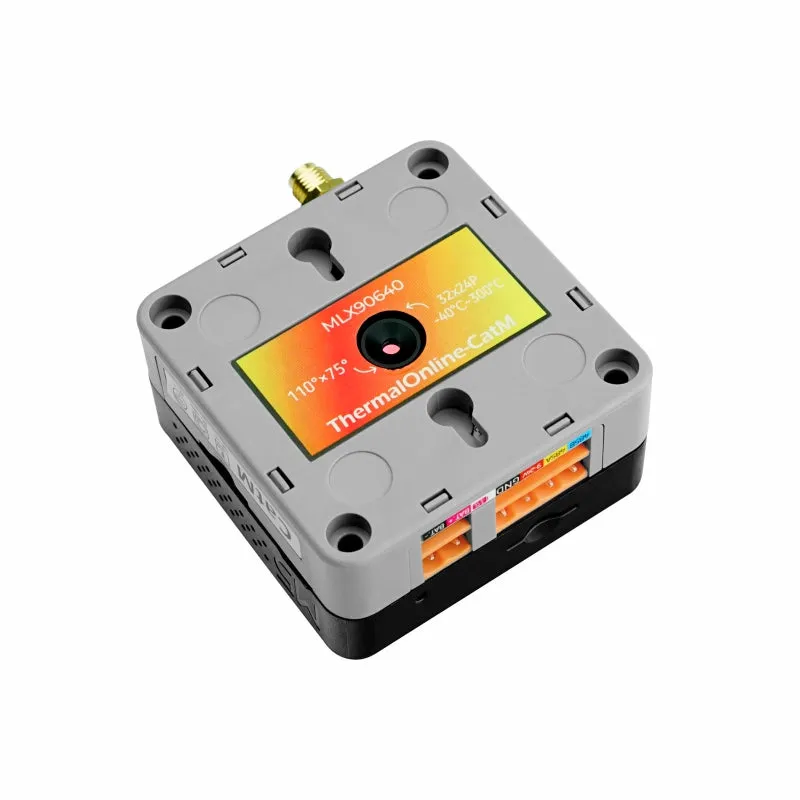

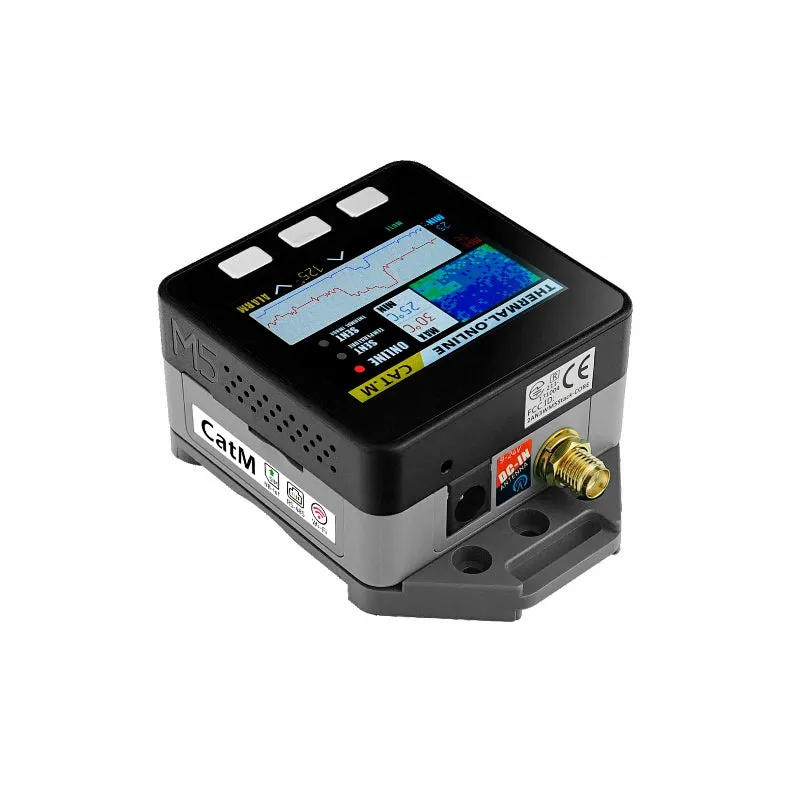

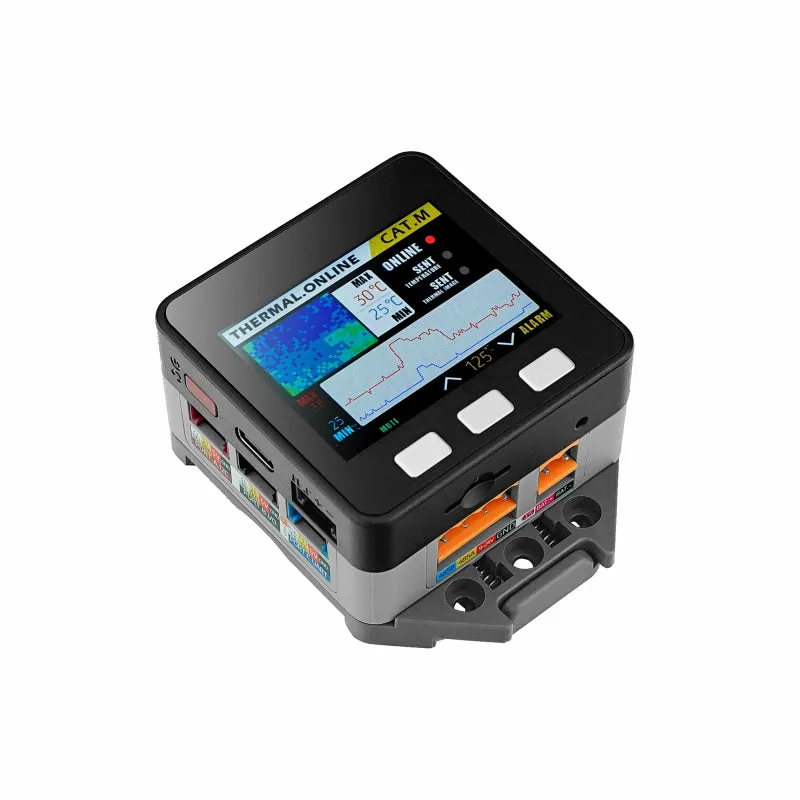

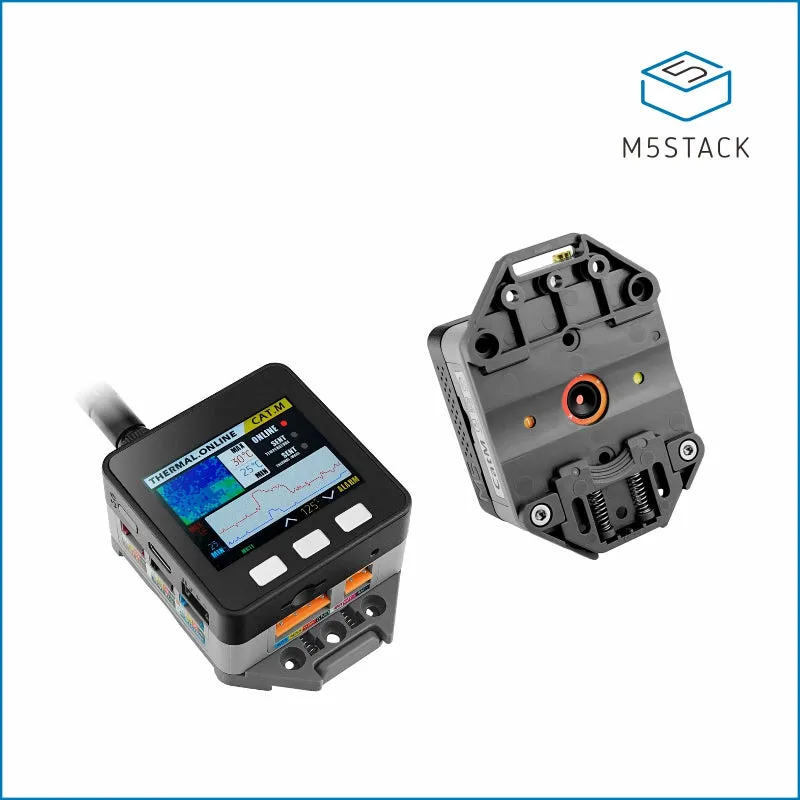

ThermalOnline Cat-M is an industrial-grade remote thermal monitoring kit. Adopt the MLX90640 IR thermal sensor (32x24 array), M5Stack BASIC Core(ESP32 controller), and SIM7080G module, support CatM/NB-IoT/ Wi-Fi` communications, for non-contact remote temperature measurement. The rich expansion options including I2C UART GPIO RS485 Battery-power ports, suitable for many applications.
Product Features
- MLX90640 ( 32x24 IR pixel array, temperature range: -40°C ~ 300°C , I2C port: 0x33 )
- Module Solution: SIM7080G
- Cat-M & NB-IoT modes with Global Coverage
- UART interface/ AT command control
- Global version/ multi-band support
- Card slot: MicroSIM
- Antenna: external
SMAantenna - Module certifications:
- Softbank/Telec/RoHS/REACH/JATE/Docomo/KDDI/RCM/CE(RED)/GCF
- Deutsche Telekom/FCC/PTCRB/AT&T/Verizon/T-Mobile/US Cellular/IC

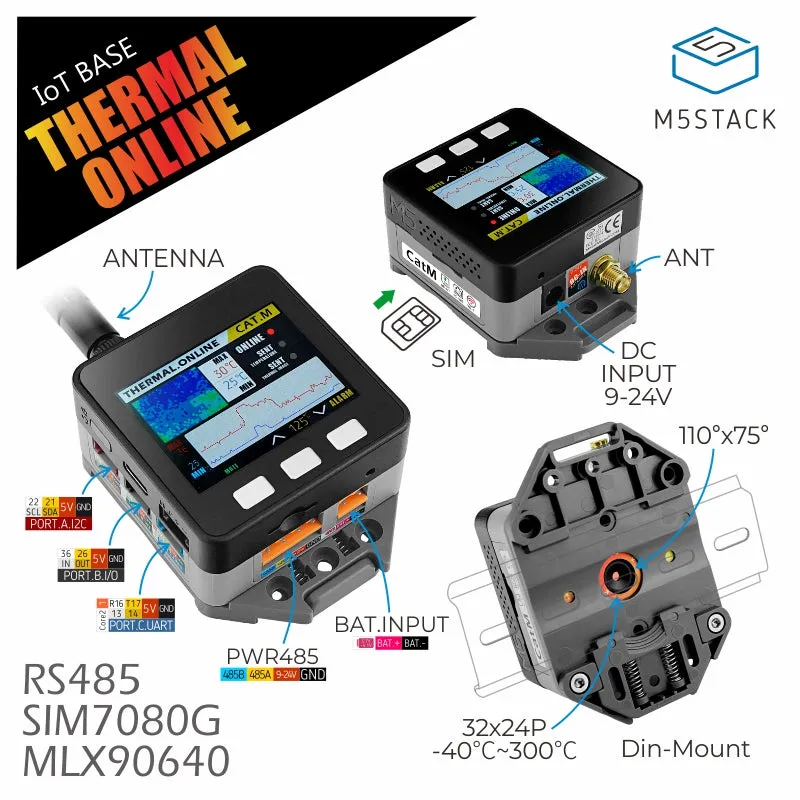

- ESP32 Controller expansion interfaces:
- 1x I2C
- 1x TF Card

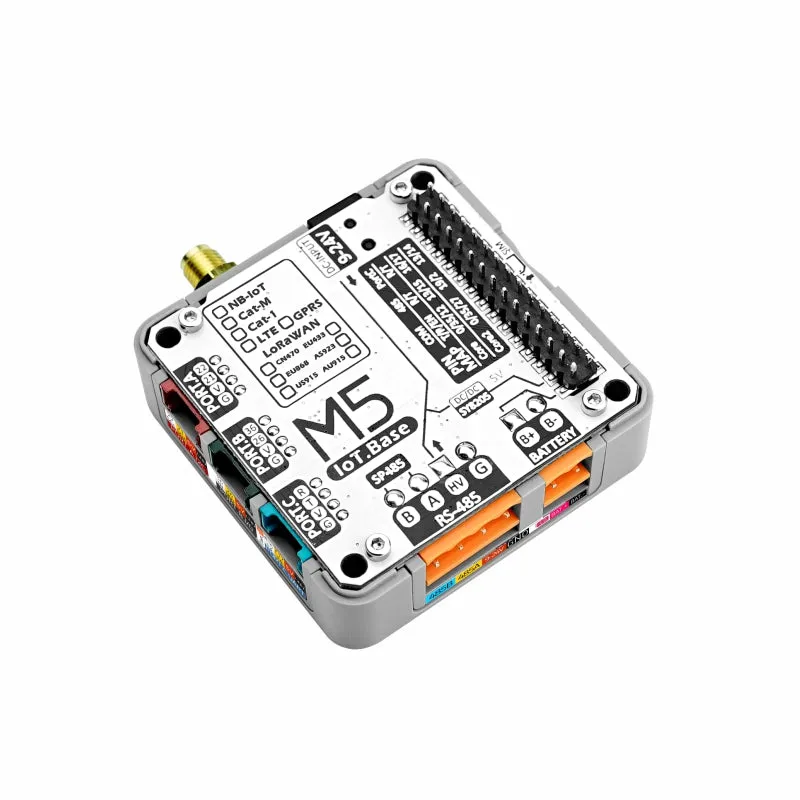

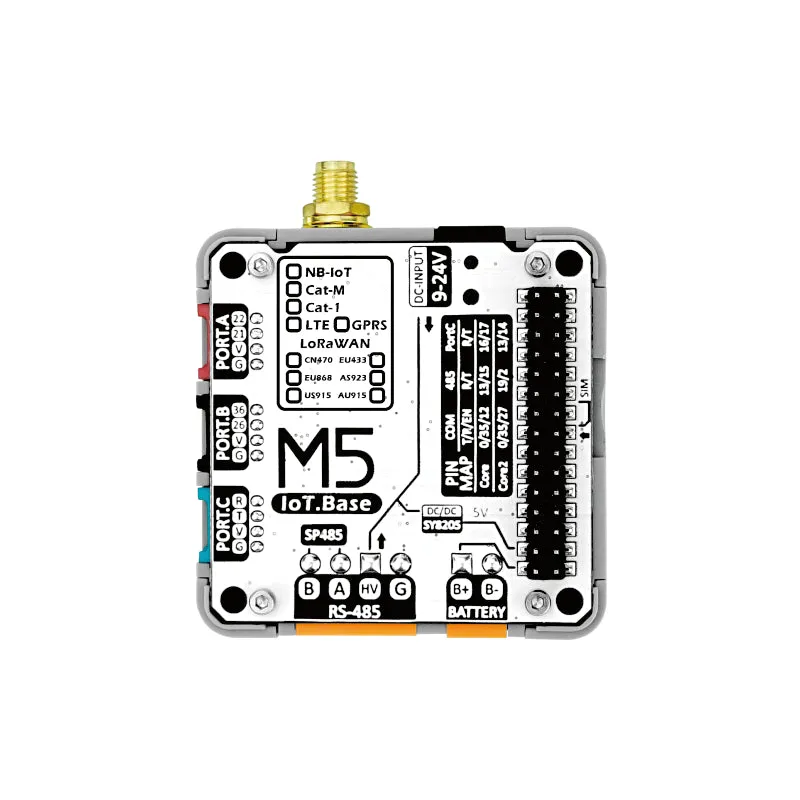

- IoT Base Expansion ports:
- 1x PWR485 (RS485 DC12V INPUT)
- 1x DC power jack
- 1x I2C
- 1x GPIO
- 1x UART
- 1x Battery Expansion port

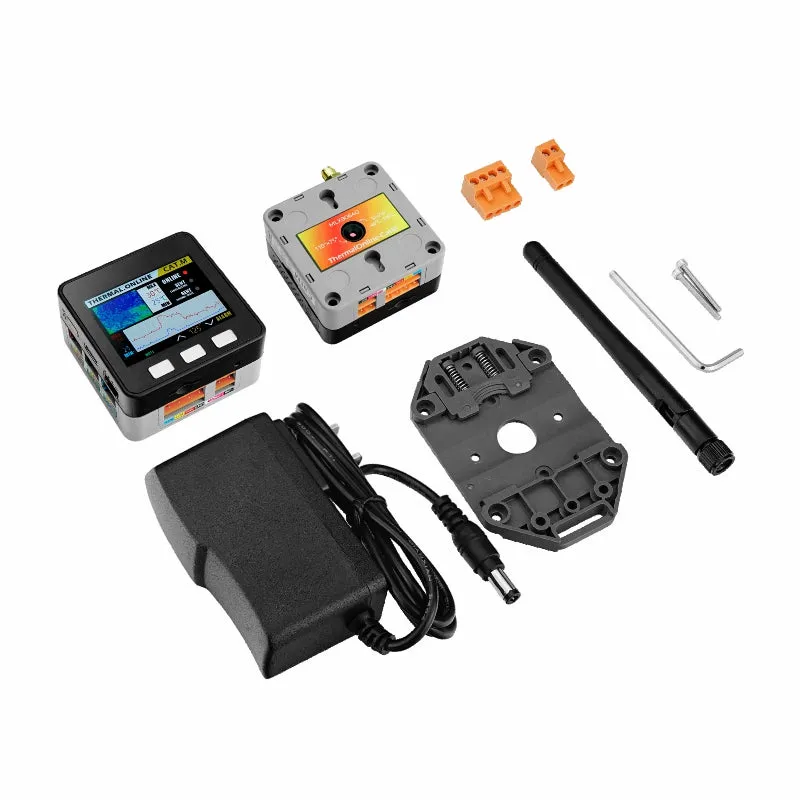

Include
- 1x BASIC Core Controller
- 1x IoT Base Cat-M module
- 1x SMA Antenna
- 1x 12V DC Power Adapter
- 1x VH-3.96-2P terminal
- 1x VH-3.96-4P terminal
- 1x Guide rail mount base plate
- 2x M3*28 screws
- 1x M3 hexagonal wrench
Application
- Non-contact temperature measurement
- Remote control / data acquisition
Specifications
| Specifications | Parameters |
|---|---|
| Non-contact temperature sensor | MLX90640 (32x24 infrared pixel array, temperature measurement range: -40°C ~ 300°C, I2C interface: 0x33) |
| Communication module | SIM7080G, communication interface: UART baud 115200 8N1 |
| Support CAT-M band | B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26 /B27/B28/B66/B85 |
| Support CAT-NB frequency band | B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B28 /B66/B71/B85 |
| Cat-M uplink and downlink speed | Uplink: 1119Kbps Downlink: 589Kbps |
| NB-IoT uplink and downlink speed | Uplink: 150Kbps Downlink: 136Kbps |
| RF Power Class | Class 5 (Typ. 21dbm) |
| Card slot specifications | MicroSIM |
| Support protocol: | TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT and other communication protocols |
| Working current | 54mA (DC interface 12V input, when the device is connected to the network) |
| Interface specifications | I2C/GPIO/UART(HY2.0-4P) RS485(VH-3.96-4P) DC interface (round hole DC-IN-TH_DC-0440-2.5A-2.0) Lithium battery interface (VH-3.96-2P) |
| Net weight (module) | 75.7g |
| Gross weight | 200.1g |
| Product size | 80 * 54 * 33mm |
| Packing size | 98 * 106 * 57mm |
